Accessories
sRemote Fan Control (KK-4955)
Permits remote adjustment of pattern size
sFluid Tip and Needle Sets
Several kits are available for corrosive materials, primers and highly
pigmented materials.
sMounting Clamp (AGA-415)
Clamps gun stud to rod, allowing gun rotation to any angle.
sAbrasive Fluid Seal Kit (KK-5017)
Designed for use with abrasive materials.
sMounting Block Accessory Kit (KK-5046)
Allows mounting the gun onto a 1/2" rod.
sAdditional Accessories
Fluid regulators, fluid strainers, air control units, gun and hose cleaning
equipment and other accessories also are available.
Accessories
sConvert to HVLP by changing the spray head, air cap and baffle.
(See Service Bulletin SB-2-628.)
sFluid regulators, fluid strainers, air control, gun and hose cleaning
equipment and other accessories are also available.
sKK-5046 Mounting block kit for mounting gun on 1/2" rod.
sFan control kit – for remote operation (KK-4955)
Technical Specifications:
Body:................................................... Machined aluminum
Weight: ............................................... 26 oz (728 gr) without mounting stud
30 oz (840 gr) with mounting stud
Cylinder Air Pressure: ........................ 100 psi (7 bar)max., 50 psi (3 bar) min.
Air Inlet: ............................................. 100 psi (7 bar)max., 1/4" NPS (M)
Fluid Inlet: ......................................... 100 psi (7 bar)max., 3/8" NPS (M)
Wetted Parts: ...................................... 300 Grade stainless steel tips & needles,
stainless steel fluid passages
Feed Type:........................................... Pressure feed
(Material Supply)
Fluid Pressure: ................................... 100 psi (7 bar)max
Mounting Stud:.................................. 3/4" dia.
Service Bulletin:................................. SB-2-628
Gun Repair Kit:.................................. KK-4992-1
Technical Specifications:
Body:................................................... Machined aluminum
Weight: ............................................... 26 oz. (728 gr) without mounting stud
30.5 oz. (854 gr) with mounting stud
Cylinder Air Pressure: ........................ 100 psi (7 bar)max., 50 psi (3 bar)min.
Air Inlet: ............................................. 100 psi (7 bar)max., 1/4" NPS (M)
Fluid Inlet: ......................................... 100 psi (7 bar)max., 3/8" NPS (M)
Wetted Parts: AGX-550............... 300 & 400-grade stainless steel, PTFE
AGX-552............... 300 & 400-grade stainless steel, Carbolloy,
U.H.M.W. polyethylene
AGX-553............... 300-grade stainless steel, U.H.M.W.
polyethylene, PTFE
Feed Type:........................................... Pressure feed
(Material Supply)
Fluid Pressure: ................................... 100 psi (7 bar)max.
Mounting Stud:.................................. 3/4" dia.
Service Bulletin:................................. SB-2-624
Gun Repair Kit:.................................. KK-4992-1
Chart 1 AGXV Air Caps—Patterns & Applications
Air Cap # Typical Pattern Typical
(Complete No.) Size & Shape* Application
33A 9"(229 mm) long, tapered ends Most common finishing materials
(JGHV-101-33A) similar to 30 air cap up to 12 oz./min. (360 cc)
46MP 11"(280 mm) long, straight-sided Low VOC material
(JGHV-101-46MP) similar to 704 air cap 12 to 16 oz./min. (360-480 cc)
83MP 13"(330 mm) long, straight-sided Low VOC material
(JGHV-101-83MP) similar to 765 air cap 17 oz./min. (510 cc) & above

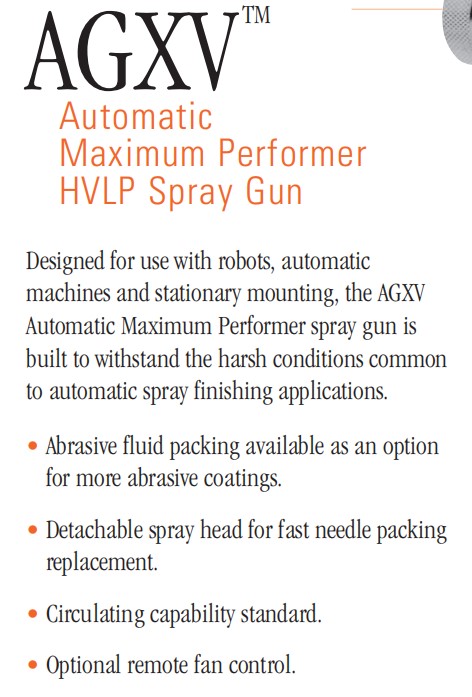

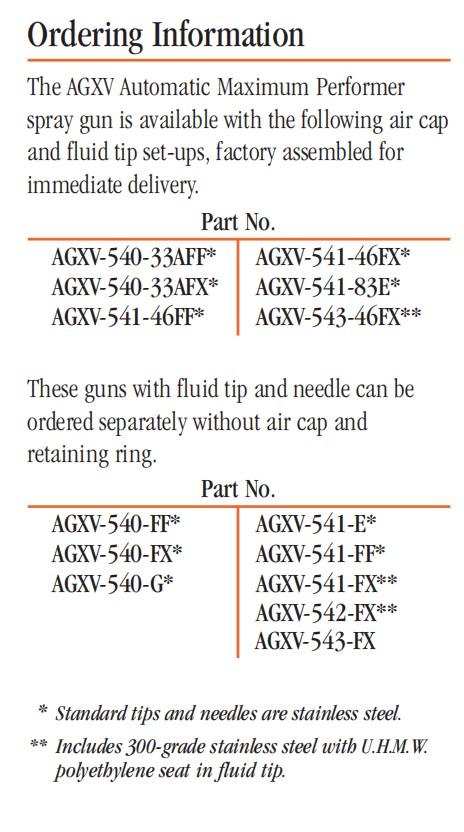

AGXV TM
Automatic Maximum Performer
HVLP Spray Gun

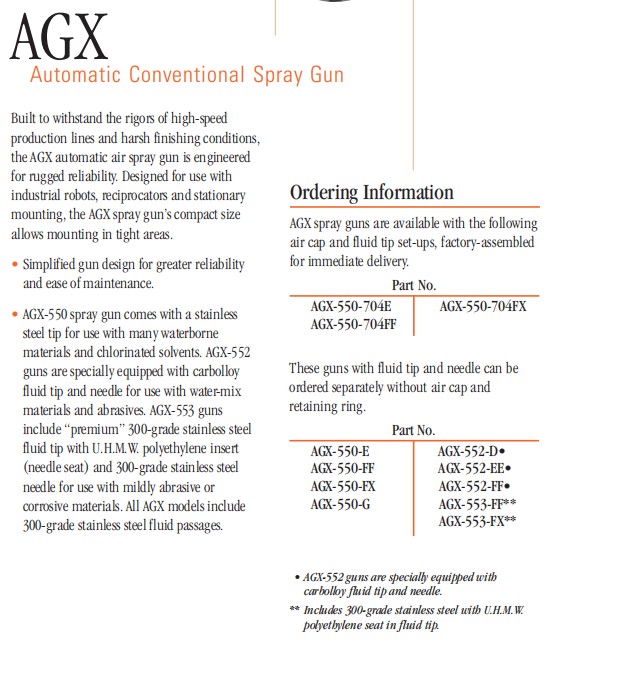

AGX
Automatic Conventional
Spray Gun
*Actual pattern length dependent upon fluid tip (nozzle) ID, coating material flow rate,
air pressure and fan pressure.
Chart 2 AGX Air Caps
If this No. on Cap, Ref. No. (2) Ref. No. (1 & 2)
Order Air Cap Air Cap
Less Retaining Ring With Retaining Ring
24 AV-40-24
30 MB-4039-30
58 AV-439-58
62 MB-4039-62HD
64 MB-4039-64HD
704 AV-1239-704
765 AV-1239-765
777 31767-777
797 AV-1239-797
Fluid Tip Orifice Sizes
Letters on Tip Inch mm
AC .110" 2.8
D .086" 2.2
E (Stainless) .070" 1.8
EE (Carbolloy) .070" 1.8
FF .055" 1.4
FX .042" 1.1
G .028" 0.7
Retaining ring required (MBC-368)
