概述
DeVilbiss的AG360自動噴槍系列可提供多種噴槍類型，旨在為所有應用提供全面、通用的自動噴涂解決方案。
此噴槍設計用于現代涂裝行業嚴苛的工作環境，可提供最高生產率，且停機時間降到最低.
能夠處理高流量流體以及腐蝕性涂料和環境。
AG362噴槍采用更加通用的設計（歡迎免費注冊，登陸中國涂料在線（涂料在線）行業門戶網址www.zx446.com，免費發布供求，免費發布產品，免費發布企業動態）。

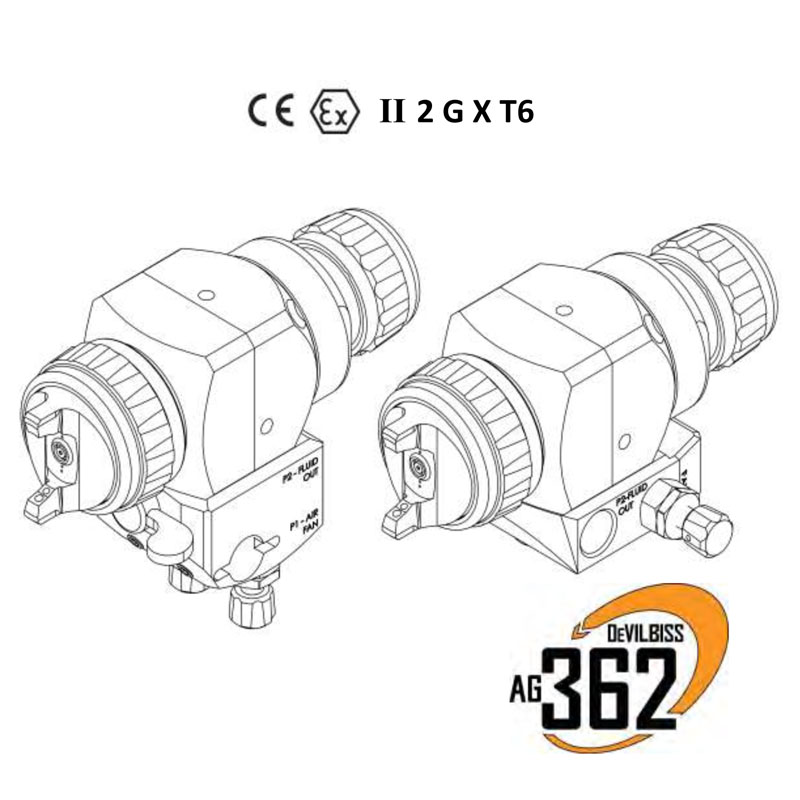

與AG361自動噴槍具有同樣出眾的規格，但同時還添加了可以快速拆卸的歧管底座。
這樣即可在維護、清潔或更換時簡單、快速拆卸噴槍，而不會干擾定位設置。重新連接時，可以恢復啟動流體和空氣，噴槍立即進入正確位置，隨時準備運行。AG362用于一般工業，AG-362P專門設計用于化妝品和玻璃制品業。AG362噴槍可配備兩種不同設計的歧管，進而可選擇空氣/流體的連接布局以及噴槍的連接方法。

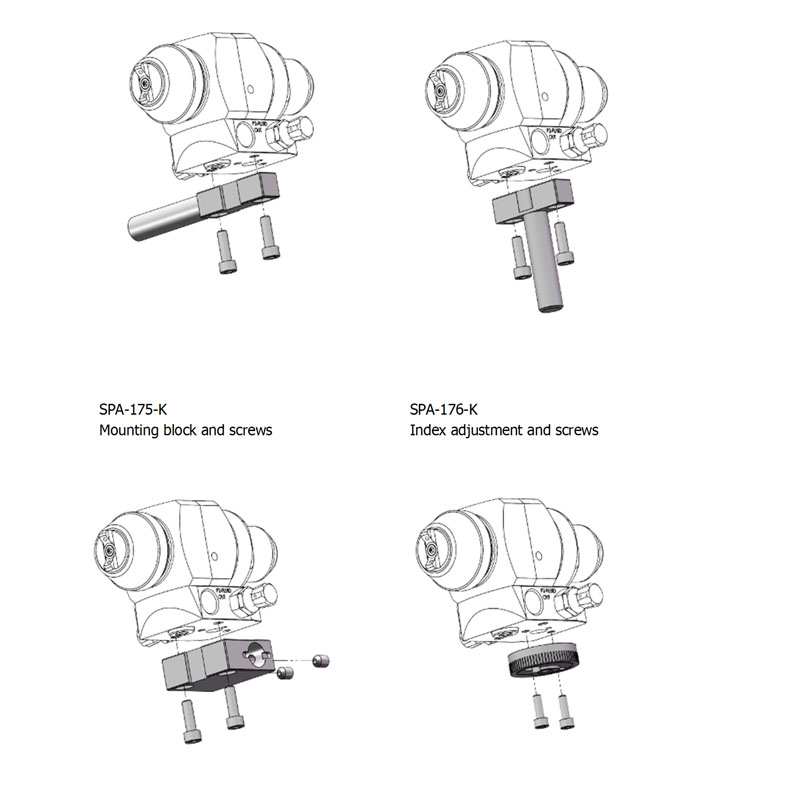

AG362L桿式操作型可實現最快速拆卸；AG362S螺接型配備多個機器安裝選件，尺寸較小.
AG362P“微小”槍頭型。改裝的歧管安裝式噴槍，設計用于將涂料精確涂布到化妝品包裝和玻璃制品上。此噴槍采用專門設計用于此類噴涂的‘微小型’精密空氣帽和流體噴嘴。對于超細流體控制，此噴槍可配備千分尺游標指針控制旋鈕組件，從而實現精確的超細流體設置。
技術規格
DeVilbiss AG362 空氣自動噴槍
360 Series Air Cap Chart
Air Cap and Type | Air Consumption | Air Inlet Pressure Bar (psi) recommended | *Typical Fluid Flow | *Typical Fan Pattern size mm |
C1 Conventional | 300 l/min (10.7 cfm) | 3 Bar (45 psi) | 150-250 ml/min | 270 mm @ 200mm distance |
C2 Conventional | 290 l/min (10.3 cfm) | 3 Bar (45 psi) | 100-350 ml/min | 250 mm @ 200mm distance |
C3 Conventional | 440 l/min (15.7 cfm) | 3 Bar (45 psi) | 250-600 ml/min | 360 mm @ 200mm distance |
TE10 Trans-Tech/High Efficiency | 255 l/min (9.1 cfm) | 2 Bar (30 psi) | 150-200 ml/min | 300 mm @ 200mm distance |
TE20 Trans-Tech/High Efficiency | 325 L/min (11.6 cfm) | 2 Bar (30 psi) | 150-200 ml/min | 290 mm @ 200mm distance |
TE30 Trans-Tech/High Efficiency | 375 L/min (13.3 cfm) | 2 Bar (30 psi) | 200-300 ml/min | 300 mm @ 200mm distance |
TE40 Trans-Tech/High Efficiency | 355 L/min (12.6 cfm) | 2 Bar (30 psi) | 250-400 ml/min | 380 mm @ 200mm distance |
TE50 Trans-Tech/High Efficiency | 425 L/min (15.1 cfm) | 2 Bar (30 psi) | 250-400 ml/min | 300 mm @ 200mm distance |
HV30 HVLP | 450 L/min (16.0 cfm) | 1.75 Bar (26 psi) | 160-200 ml/min | 315 mm @ 200mm distance |
C62 Conventional | 431 L/min (15.4 cfm) | 3 Bar (45 psi) | < 3.5 L/min | 390 mm @ 300mm distance |
C64 Conventional | 400 L/min (14.3 cfm) | 3 Bar (45 psi) | < 2.5 L/min | 340 mm @ 300mm distance |
C67 Conventional | 426 L/min (15.2 cfm) | 3 Bar (45 psi) | < 2.0 L/min | 430 mm @ 300mm distance |
Note: HV30 (HVLP) operates at 0.7 bar (10 psi) at the cap. All illustrated flow rates may vary according to paint/material and pressures used.
Spray gun specifications

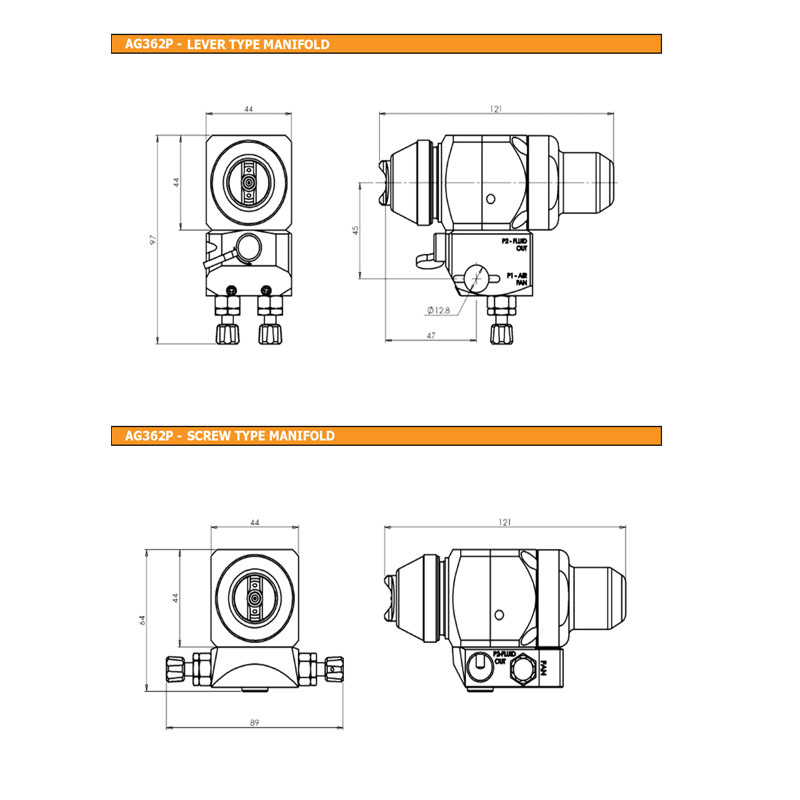

Gun Dimensions & Weights |
AG-362 Gun Size (L x H x W) mm | 122 x 44 x 44 |
AG-362 (Gun only) Weight | 557 g (inc air cap) |
AG-362P Size (L x H x D) mm | 145 x 44 x 44 |
AG-362P (Gun only) Weight | 524 g (inc air cap) |
Manifold Dimensions & Weights |
Cam Manifold Size (L x W x H) mm | 60 x 44 x 53 (inc valves) |
Cam Manifold Weight | 347 g |
Screw Manifold Size (L x W x H) mm | 59 x 63 (inc valves) x 20 |
Screw Manifold Weight | 268 g |
All Guns |
Max Air Input Pressure (P1) | 7 bar |
Max Fluid Input Pressure (P2) | 7 bar |
Max Operating Ambient Temperature | 40°C nominal |
Gun Head & Fluid Passageways | Stainless Steel |
Gun Body Material | QuickClean? coated Aluminium |
Manifold Material | Stainless Steel |
Fluid Nozzle & Needle Materials | 303 Stainless Steel, Nitride coated Stainless Steel,
Tungsten carbide |
Seals & O rings | HDPE, FEPM, PTFE, FFKM |
Fluid & Air Inlets
AG-362L Lever Manifold | AG-362S Screw Manifold |
CYL Air inlet connection 1/8” G | CYL Air inlet connection 1/8” G |
Fluid Inlet connection 1/8” G | Fluid Inlet connection 1/4’ NPS |
Fluid Outlet connection 1/8” G | Fluid Outlet connection 1/4” NPS |
ATOM Air inlet connection 1/8” G | CAP Air inlet (ATOM+FAN) 1/4” G |
FAN Air inlet connection 1/8” G |
|
